| Current Input (•n) | ../5A or ../1A |
| Frequency | Software selectable 50 or 60 Hz |
| Burden | <0.3 VA @ •n |
| Output Relay Rating | SPDT 5A, 250V AC/DC |
| Display | 7-Segment LED (3 + 1digit) |
| Indication (LEDs) | mA, pre-alarm, fault, fault start event, lo / hi trip |
| Operating Temp. | 0ºC ~ +55ºC |
| Humidity | 56 days at 93%RH, 40ºC non-condensing |
| IP Rating | IP54 (front panel) |
| Weight | 230 g |
| PARAMETER SETTING | |
| •>: lo-set | 2% ~ 100% (step of 1%) |
| TM >: lo-set time Multiplier | 0.05 ~ 1.00 (step of 0.01, 5 IDMT + 1 DTL) |
| •>: lo-set trip delay time | 0.03s~20.0s 0.03s~0.10s (step of 0.01s) 0.10s~1.00s (step of 0.02s) 1.0s~20.0s (step of 0.1s) |
| •>>: hi-set | OFF or 20%~1000% (step of 10%) |
| •>>: hi-set trip delay time | 0.03s~0.5s |
EFR

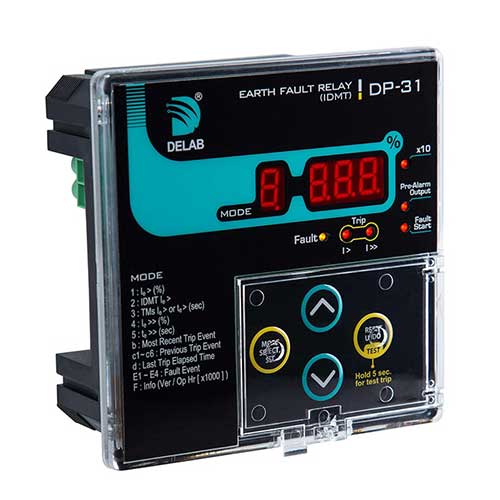

Earth Fault Relay (Inverse Definite Minimum Time – IDMT) – DP-31
රු50,880.00
Delab – Earth Fault Relay – DP-31
