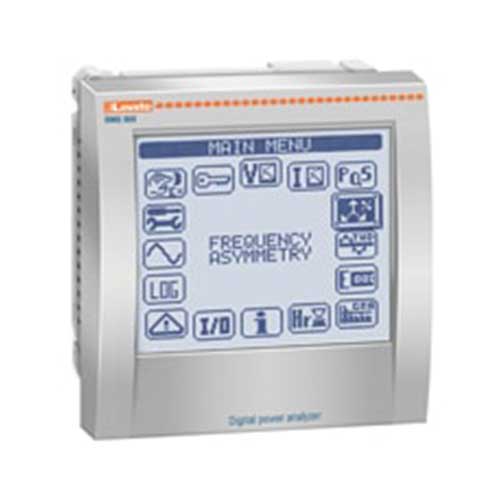

The main features include an extended power
supply voltage range (100…440VAC), high
measurement accuracy (±0.5% for voltage and
current), expandability (using EXP modules) and
LCD interactive interface for simple use.
Main measurements and functions include:
- Voltage: phase, line and system values
- Current: phase values (neutral current
calculated) - Power: apparent, active and reactive phase
and total values - Power Factor per phase and total
- Frequency of measured voltage value
- HIGH-LOW-AVERAGE value functions for all measurements
- Maximum demand of power and current values
- Voltage and current asymmetry
- Total harmonic distortion (THD): voltage and current
- Display of voltage and current harmonics up to the 15th order
- Energy meters for active, reactive,
apparent partial and total values,
per phase and system values - Hour counter for programmable
total and partial hours - Phase active power unbalance.
